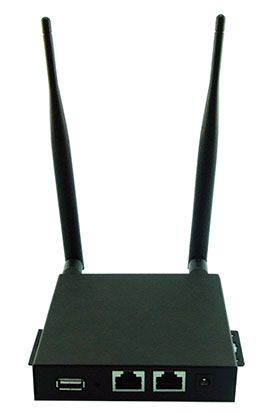

E590 is a 11ac standard, dual band 3G /4G wireless Router for Car, Taxi, Bus, Boat and other public vehicle, it convert 3G/4G data to high-speed, safe and reliable WiFi signal for end users for information, entertainment or business. It is an important part of the intelligent vehicle system.
Main Features:
1. Comply with IEEE 802.11a/b/g/n Standard, 2.4GHz, the data rate can be 300Mbps, more data, lRemark:
2. Build in 3G/4G module, support LTE-FDD, WCDMA/CDMA and GSM networking. Then band adjustable, can comply with all operator.
3. With usb, can support 64GB easy to transfer large video data to save the 3G/4G data.
4. If Necessary, E590 can support WEB portal authentication, advertisement push and real-time update through PC. (Remark: the default firmware not support web portal authentication, can be customized in a large quantity)
E590 work with following band, can choose the solution meet with your request:
|
Part umber
|
Parameter
|
|
E590E
|
EVDO\CDMA1X:800MHZ; UL:1.8Mbps DL:3.1Mbps; CDMA1X:153Kbps
|
|
E590W-D
|
WCDMA:2100MHZ; UL:384Kbps DL:7.2Mbps; GSM:850/900/1800/1900MHZ: UL/DL:56Kbps
|
|
E590W-U
|
WCDMA:2100MHZ; UL:5.76Mbps DL:7.2Mbps; GSM:850/900/1800/1900MHZ: UL/DL:56Kbps
|
|
E590W-U+
|
WCDMA:2100/900MHZ或2100/850MHZ; UL:5.76Mbps DL:42Mbps; GSM:850/900/1800/1900MHZ: UL/DL:56Kbps
|
|
E590F
|
FDD:B1\B3\B7(B5/B8可选）WCDMA:2100/900MHZ或2100/850MHZ; UL:5.76Mbps DL:42Mbps; GSM:850/900/1800/1900MHZ: UL/DL:56Kbps
|
|
Hardware:
|
|
Chipset
|
MTK7620N
|
|
Frequency
|
580MHz
|
|
WiFi Standard
|
2.4G 802.11b/g/n ; 5G 802.11a/n/ac 2T2R 750M MIMO technology
|
|
Memory
|
64MB DDR RAM
|
|
Flash
|
8MB
|
|
Interface
|
WAN /LAN Port: 1 * 10/100 Mbps RJ45 Port
|
|
RS232 Port: 1
|
|
Reset button: Press it with 10 second, product with default data
|
|
SIM Card Slot: work with 3G/4G data card
|
|
USB Port:1
|
|
Aviation interface: connect with vehicle
|
|
Power switch: Power on / off
|
|
|
|
Antenna
|
Externa 5dBi MIMO antenna
|
|
PCB Board size
|
L 103mm ，W 98mm
|
|
Power
|
DC 12V-1A/2A
|
|
Power Consume
|
>6W
|
|
RF Data
|
|
RF Data
|
2.4G: 802.11b/g/n ;
|
|
2.4GHz
|
|
Modulation Scheme
|
OFDM = BPSK,QPSK, 16-QAM, 64-QAM 256-QAM
|
|
DSSS = DBPSK, DQPSK, CCK
|
|
Data Rate
|
300Mbps
|
|
Receive Sensitivity
(2.4GHz)
|
802.11n(2.4GHz)
|
802.11g
|
802.11b
|
|
-92dBm @ MCS0
|
- 92dBm @ 6Mbps
|
- 95dBm @ 1Mbps
|
|
-70dBm @ MCS7
|
- 72dBm @ 54Mbps
|
- 93dBm @ 11Mbps
|
|
-91dBm @ MCS8
|
|
|
|
-68dBm @ MCS15
|
|
|
|
RF Power
(2.4GHz)
|
802.11n(± 2.0dBm)
|
802.11g(± 2.0dBm)
|
802.11b(±2.0dBm)
|
|
18dBm@ MCS0~2/MCS8~10
|
19dBm @ 6~24Mbps
|
20dBm @1~11Mbps
|
|
18dBm @ MCS3/MCS11
|
18dBm @ 36Mbps
|
|
|
17dBm @ MCS4/MCS12
|
17dBm @ 48Mbps
|
|
|
17dBm @ MCS5/MCS13
|
17dBm @ 54Mbps
|
|
|
16dBm @ MCS6/MCS14
|
|
|
|
16dBm @ MCS7/MCS15
|
|
|
